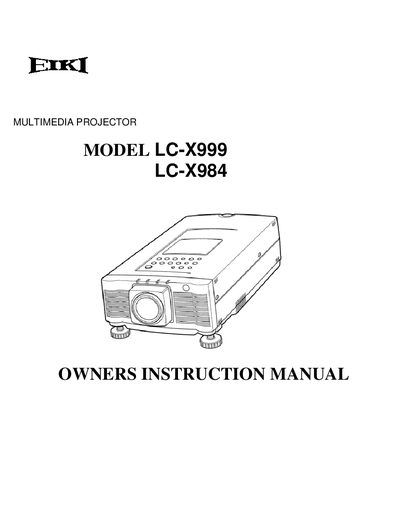

This manual is the owner's manual for the LC-X999 and LC-X984 projectors. It mainly introduces the features, installation, use, maintenance and other contents of the products.
This manual provides safety precautions, installation instructions, and operating guidance for the Eiki LC‑X999/LC‑X984 multimedia projector. It covers proper ventilation, handling, and recommended mounting methods to ensure reliable performance.
The document also includes detailed technical specifications, a parts list, and troubleshooting tips, helping users maintain image quality and address common issues.
| Projector Type | Multi-media Projector |
|---|---|
| Dimensions (W x H x D) | 10.7" (272 mm) x 5.7" (145.5 mm) x 16.2" (412.5 mm) |
| Net Weight | 15.2 lb (6.9 kg) |
| LCD Panel System | 1.3° TFT Active Matrix type x 3 panels |
| Number of Pixels | 2,359,296 (1,024 × 768 × 3) |
| Color System | PAL, SECAM, NTSC, NTSC4.43, PAL‑M, PAL‑N |
| Projection Image Size | Adjustable from 31" to 400" diagonal |
| Projection Lens | FI .8 2.1 lens, f=48.4 mm, motor zoom and focus |
| Throw Distance | 4.6 ft (1.4 m) to 47.3 ft (14.4 m) |
| Projection Lamp | 200 W |
| AV Input Jacks | RCA (3 × 2), S‑Video (DIN 4‑pin) |
| Computer Input Jacks | VGA (HDB‑15) × 2, Control port (DIN 8‑pin) × 2 |
| Built‑in Speaker | 2 × 4 cm × 7 cm, 3 W + 3 W stereo |
| Voltage | 100 ~ 120 VAC, 50/60 Hz |
| Power Consumption | 3.6 A (max) |
| Operating Temperature | 5 °C ~ 35 °C |
| Storage Temperature | -10 °C ~ 60 °C |
| Remote Control Laser Output | Class 1, max 1 mW |
Keep the rear grill at least 3 feet (about 1 meter) away from any object.
The projection lamp is a 200‑watt type.
