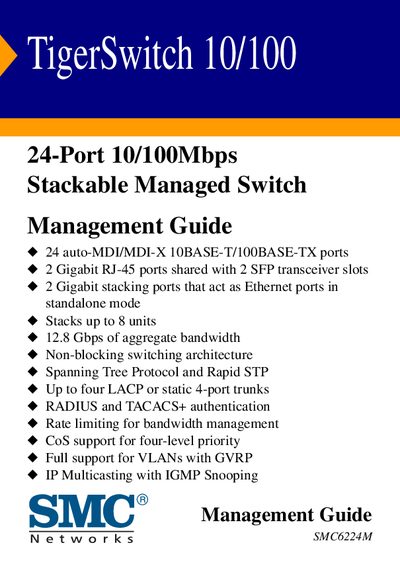

This is a management guide for the TigerSwitch 10/100 24-Port 10/100Mbps Stackable Managed Switch. The switch features 24 auto-MDI/MDI-X 10BASE-T/100BASE-TX ports, 2 Gigabit RJ-45 ports shared with 2 SFP transceiver slots, 2 Gigabit stacking ports that act as Ethernet ports in standalone mode, stacking capability of up to 8 units, 12.8 Gbps of aggregate bandwidth, non-blocking switching architecture, Spanning Tree Protocol and Rapid STP, support for up to four LACP or static 4-port trunks, RADIUS and TACACS+ authentication, rate limiting for bandwidth management, CoS support for four-level priority, full support for VLANs with GVRP, and IP Multicasting with IGMP Snooping.
The SMC TigerSwitch 10/100 provides 24 auto‑MDI/MDI‑X 10/100Mbps ports, two gigabit RJ‑45 ports with SFP slots, and two gigabit stacking ports that can be used as regular Ethernet ports in standalone mode. It supports stacking of up to eight units for a total aggregate bandwidth of 12.8 Gbps and features a non‑blocking switching architecture.
The guide covers initial configuration, stack operations, firmware management, web interface usage, SNMP setup, and security configuration such as RADIUS/TACACS+, HTTPS, SSH, and port security. Warranty information and technical support contacts are also included.
| Ports | 24 auto‑MDI/MDI‑X 10/100Mbps |
|---|---|
| Gigabit ports | 2 RJ‑45 ports shared with 2 SFP slots |
| Stacking ports | 2 Gigabit (also Ethernet in standalone mode) |
| Maximum stack size | 8 units |
| Aggregate bandwidth | 12.8 Gbps |
| Authentication methods | RADIUS, TACACS+ |
| VLAN support | Full VLANs with GVRP |
Up to eight units can be stacked to form a single logical switch.
The switch provides 12.8 Gbps of aggregate bandwidth.
The device supports RADIUS and TACACS+ authentication.
