The SMC6724L2 is a member of SMC's Tiger line of feature-rich workgroup LAN solutions. It features 24 10BASE-T/100BASE-TX auto MDI/MDI-X ports, optional 1000BASE-X or 100BASE-FX modules, 8.8 Gbps of aggregate bandwidth, non-blocking switching architecture, Spanning Tree Protocol, up to four port trunks, RADIUS authentication, rate limiting for bandwidth management, QoS support for four-level priority, full support for VLANs with GVRP, IP Multicasting with IGMP Snooping, and manageable via console, Web, SNMP/RMON.

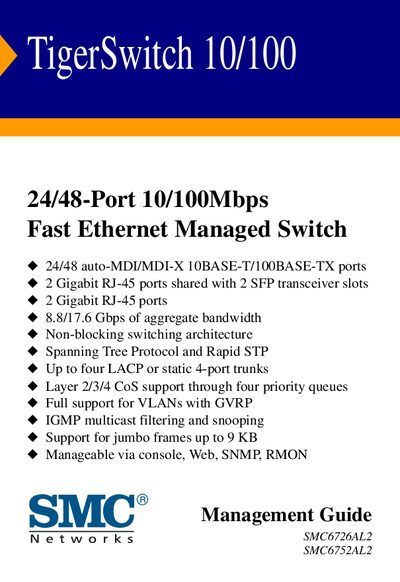

The guide introduces the TigerSwitch 10/100 series, a 24‑ or 48‑port Fast Ethernet managed switch with two Gigabit RJ‑45 ports and optional SFP transceiver slots. It details key features such as non‑blocking architecture, VLAN support, jumbo frames, and multiple management interfaces.
Configuration chapters cover console access, IP addressing, SNMP setup, web interface navigation, and advanced features like LACP trunks, ACLs, and 802.1X authentication. Warranty terms and technical support contacts are also included.
| Port Count | 24 or 48 auto‑MDI/MDI‑X 10BASE‑T/100BASE‑TX ports |
|---|---|
| Gigabit Ports | 2 Gigabit RJ‑45 ports shared with 2 SFP slots |
| Aggregate Bandwidth | 8.8 Gbps (24‑port) / 17.6 Gbps (48‑port) |
| Jumbo Frame Support | Up to 9 KB |
| Management Interfaces | Console, Web, SNMP, RMON |
It offers either 24 or 48 auto‑MDI/MDI‑X 10BASE‑T/100BASE‑TX ports, plus two Gigabit RJ‑45 ports that share two SFP transceiver slots.
The switch can be managed through a console connection, a web interface, SNMP, and RMON.
Yes, it supports jumbo frames up to 9 KB in size.
