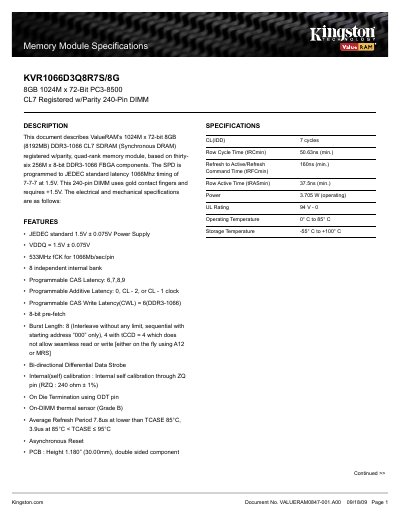

This document describes the features and characteristics of ValueRAM's 8GB (8192MB) DDR3-1066 CL7 SDRAM registered with parity, quad-rank memory module, based on thirty-six 256M x 8-bit DDR3-1066 FBGA components. The SPD is programmed to JEDEC standard latency 1066MHz timing of 7-7-7 at 1.5V. This 240-pin DIMM uses gold contact fingers and requires +1.5V.
The KVR1066D3Q8R7S/8G is an 8 GB (8192 MB) DDR3‑1066 CL7 registered memory module with parity, built from thirty‑six 256 M × 8‑bit FBGA components. It operates at a standard 1.5 V power supply and includes a gold‑contact 240‑pin DIMM form factor.
Key features include programmable CAS latency (6‑9), programmable additive latency, on‑die termination, an on‑DIMM thermal sensor, and a 533 MHz internal clock. Electrical specifications list a typical operating power of 3.705 W, operating temperature from 0 °C to 85 °C, and storage temperature from –55 °C to +100 °C. The module dimensions are 30.00 mm in height.
| Capacity | 8 GB (8192 MB) |
|---|---|
| Voltage | 1.5 V ± 0.075 V |
| CAS Latency | Programmable 6, 7, 8, 9 |
| Clock Frequency | 533 MHz |
| Power Consumption | 3.705 W (operating) |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
| Module Height | 30.00 mm |
It requires a 1.5 V ± 0.075 V power supply.
The module supports programmable CAS latency values of 6, 7, 8, and 9.
It operates from 0 °C up to 85 °C.
