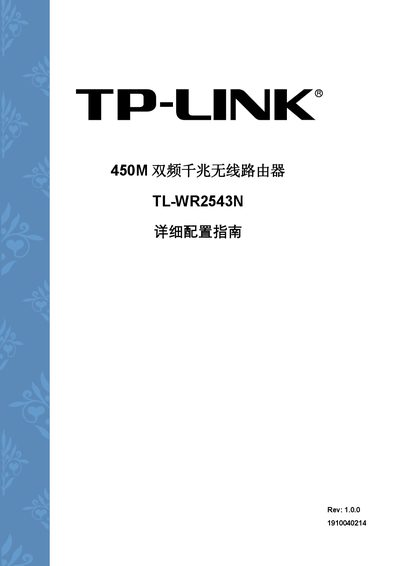

This document is the detailed configuration guide for TL-WR2543N router, which introduces the router's hardware description, quick installation guide, configuration guide, etc.
This manual provides step‑by‑step instructions for installing, configuring, and managing the TL‑WR2543N router. It covers hardware layout, quick installation, network settings, wireless security, and advanced features such as parental controls and VPN passthrough.
The document also includes appendices with FAQ, browser setup, MAC address lookup, and a full specifications table, helping users troubleshoot and fully utilize the router’s capabilities. This manual is written in Chinese.
| Supported Wi‑Fi standards | IEEE 802.11a/b/g/n |
|---|---|
| LAN ports | 4 × 10/100/1000 Mbps RJ45 |
| WAN port | 1 × 10/100/1000 Mbps RJ45 |
| USB port | 1 × USB 2.0 |
| Frequency range | 2.4 GHz – 2.4835 GHz and 5.725 GHz – 5.825 GHz |
| Maximum wireless data rate | 450 Mbps (802.11n) |
| Antenna count | 3 external detachable antennas |
| Dimensions (L×W×H) | 234 mm × 155 mm × 36 mm |
| Operating temperature | 0 °C to 40 °C |
A slow‑blinking WPS light indicates that a secure WPS connection is in progress, lasting about two minutes.
The router provides four LAN ports, each supporting 10/100/1000 Mbps auto‑negotiation.
It can operate from 0 °C up to 40 °C.
