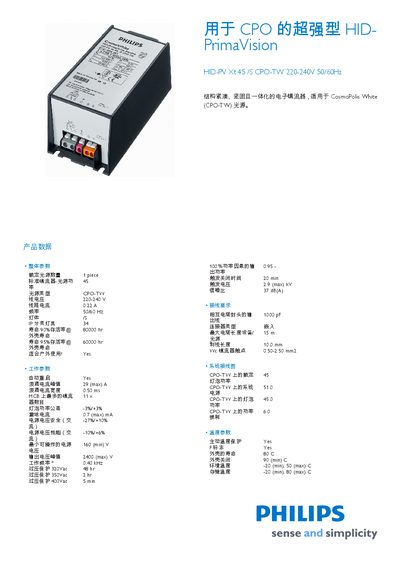

HID-PV Xt 45 /S CPO-TW 220-240V 50/60Hz is a compact, robust and integrated electronic ballast designed for CosmoPolis White (CPO-TW) lamps.
This manual covers the general description, safety requirements, and operating parameters of the Philips HID‑PV Xt 45 /S CPO‑TW high‑intensity discharge (HID) lighting product. It includes information on rated voltage, current, frequency, power factor, and lifetime, as well as compliance with international safety standards.
Detailed technical data are provided, such as physical dimensions (A1 135 mm, A2 125.7 mm, B1 65 mm, D1 48 mm), electrical limits (minimum 160 V, maximum 2400 V), and tolerance values. The document also lists EMI limits, certification marks (IEC, ENEC, VDE), and packaging information. This manual is written in Japanese.
| Rated voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Lamp lifetime | 60000 hr |
| Power factor | 100 % (unity) |
| Maximum operating voltage | 2400 V |
| Minimum operating voltage | 160 V |
The unit is rated for 220‑240 V.
The lamp is specified for a lifetime of 60 000 hours.
