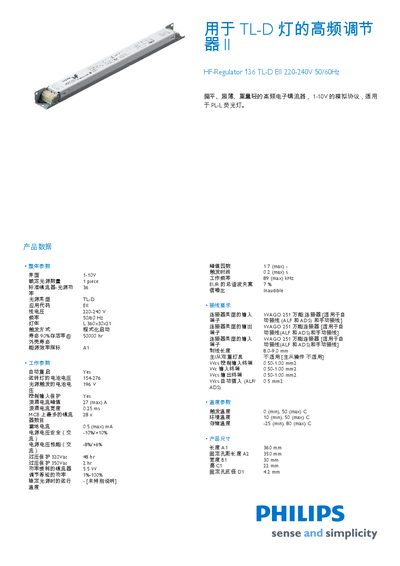

HF-Regulator 136 TL-D EII 220-240V 50/60Hz is a high frequency regulator II for TL-D lamps. It is a flat, ultra-thin, lightweight high frequency electronic ballast, with a 1-10V analog protocol, suitable for PL-L fluorescent lamps.
This manual provides product data, technical specifications, and wiring requirements for the Philips HF‑R136 TL‑D EII high‑frequency regulator used with TL‑D fluorescent lamps. It includes information on input voltage, frequency, lamp dimensions, lifetime, and safety certifications.
Additional sections cover temperature parameters, dimensions, and connection details such as WAGO universal connectors, as well as compliance with EMI, safety, and environmental standards. This manual is written in Chinese.
| Input voltage | 220-240 V |
|---|---|
| Frequency | 50/60 Hz |
| Lamp size | L360x30x21 mm |
| Number of lamps | 1 piece |
| Lifetime (operating hours) | 50000 hr |
| Maximum surge current | 27 A |
| Maximum surge current recognition | 0.5 mA |
| Trigger time | 0.2 s (max) |
| Working frequency | 89 kHz (max) |
| Peak factor | 17 (max) |
The regulator operates on an input voltage of 220‑240 V.
It supports a frequency of 50 Hz or 60 Hz.
The maximum surge current is 27 A.
The trigger time is up to 0.2 seconds.
