The TD 255 PL-L EII 220-240V 50/60Hz is a flat, lightweight high-frequency electronic ballast that uses DALI (Digital Addressable Lighting Interface) or touch dimming button protocol for PL-L5 fluorescent lamps.

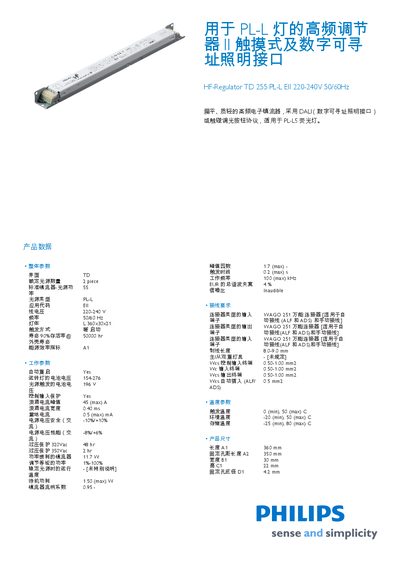

This document describes the Philips HF-RTD 255 PL-L E high‑frequency regulator, which is designed for use with PL‑L fluorescent lamps. It outlines the regulator's key parameters, wiring connections, and physical dimensions.
The sheet also lists the product's electrical specifications, environmental limits, and compliance with various international standards such as EN 55015, IEC 60929, and ISO 14001. This manual is written in Chinese.
| Input voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Supported lamps | 2 pieces |
| Maximum surge current | 45 A |
| Trigger time | 0.2 s (max) |
| Working frequency | 100 kHz (max) |
| Lifetime (90% survival) | 50 000 h |
| Operating temperature range | 0 °C – 50 °C |
| Storage temperature range | -25 °C – 80 °C |
| Length | 360 mm |
| Width | 30 mm |
| Height | 22 mm |
The regulator operates on an input voltage of 220‑240 V.
It can control up to 2 PL-L lamps.
