MASTERLine ES 35W GU5.3 12V 24D 1CT is a MASTER bicolor coated low voltage halogen reflector with EcoBoost technology, the most energy efficient bicolor lamp on the market.
The MASTERLine ES is a 35 W MR16 LED lamp with a GU5.3 base, designed for 12 V lighting systems. It offers a 3000 K color temperature, high CRI (Ra8 100), and a 24° beam angle, delivering up to 4100 cd of luminous intensity.

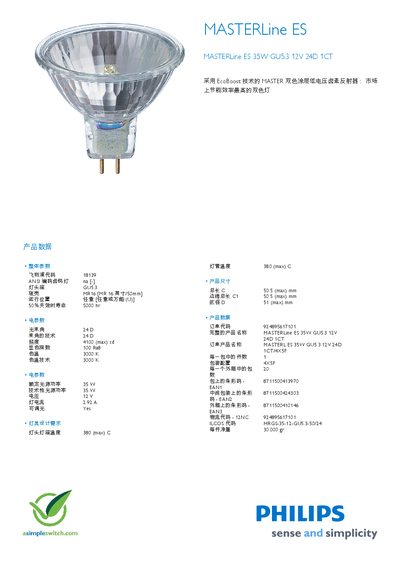

The datasheet lists technical parameters such as rated power, voltage, current, lifespan, and packaging configuration, along with barcode identifiers for inventory and logistics. This manual is written in Chinese.
| Rated Power | 35 W |
|---|---|
| Current | 2.92 A |
| Beam Angle | 24° |
| Luminous Intensity | 4100 cd (max) |
| Color Temperature | 3000 K |
| Color Rendering Index | Ra8 100 |
| Lifespan | 5000 hr (50% L70) |
| Base Type | GU5.3 |
| Lamp Size | MR16 |
| Maximum Lamp Temperature | 380 °C |
The lamp is rated at 35 W.
The lamp has a 24° beam angle.
The light has a color temperature of 3000 K.
