ESC 03 Dimming Controller for SON Lamps is an electronic controller for step dimming lighting systems. Non-peak power reduction can be achieved to dim the lighting to save electricity cost.

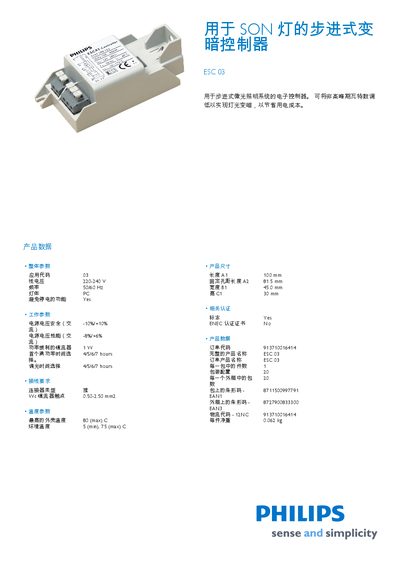

This manual describes the Philips ESC03 variable dark controller used with SON Lights. It includes overall parameters, operating settings, temperature limits, and wiring guidelines to ensure proper installation and safe operation.
Technical data such as input voltage (220‑240 V), frequency (50/60 Hz), power consumption (1 W), rated lifetime (57 677 hours), dimensions (100 mm × 81.5 mm × 45.0 mm × 30 mm) and weight (0.062 kg) are listed, along with packaging details and product codes. This manual is written in Chinese.
| Input Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Rated Lifetime | 57 677 hours |
| Conductor Size | 0.50‑2.50 mm² |
| Dimensions (L × W × H × D) | 100 mm × 81.5 mm × 45.0 mm × 30 mm |
| Weight | 0.062 kg |
The controller operates on an input voltage of 220‑240 V.
The controller is rated for 57 677 hours of operation.
