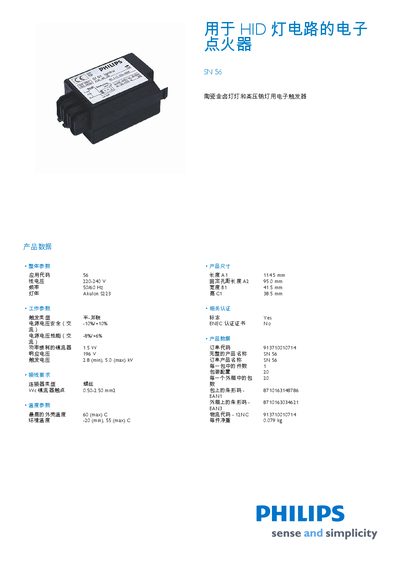

SN 56 is an electronic ignitor for ceramic metal halide lamps and high pressure sodium lamps. It can be connected to 220-240 V line voltage and 50/60 Hz frequency circuits. The ignitor's power loss is 1.5 W, the response voltage is 196 V, and the trigger voltage is 2.8 (min), 5.0 (max) kV. The product's dimensions are length A1 114.5 mm, fixing hole distance length A2 95.0 mm, width B1 41.5 mm and height C1 38.5 mm.
This manual provides the technical data and safety information for the Philips SN 56 HID lamp used in electronic ignition systems. It includes overall parameters, operating limits, wiring requirements, and temperature specifications.
The document also lists packaging details such as dimensions, weight, and barcode information, and references the Philips corporate copyright and website for further support. This manual is written in Chinese.
| Input Voltage | 220-240 V |
|---|---|
| Frequency | 50/60 Hz |
| Lamp Type | Akulon S223 |
| Breakdown Voltage | 2.8 – 5.0 kV |
| Contact Area | 0.50‑2.50 mm² |
| Maximum Ambient Temperature | 55 °C (max) |
| Length | 114.5 mm |
| Weight | 0.079 kg |
The lamp operates on an input voltage of 220‑240 V.
The lamp can operate up to 55 °C ambient temperature.
The package dimensions are 114.5 mm × 95.0 mm × 41.5 mm.
