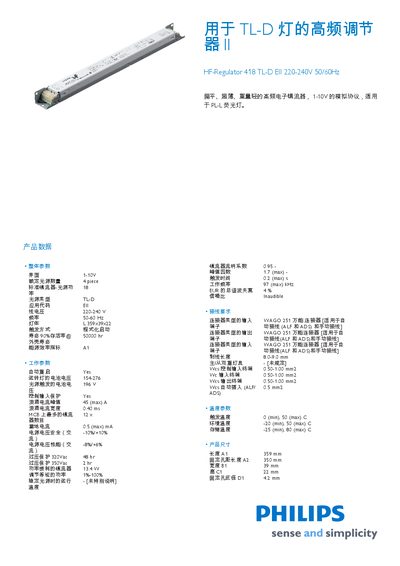

HF-Regulator 418 TL-D EII 220-240V 50/60Hz is a high frequency regulator for TL-D lamps. It is a flat, ultra-thin, lightweight high frequency electronic ballast with an analog protocol of 1-10V, suitable for PL-L fluorescent lamps.
This manual describes the Philips HF‑R 418 TL‑D EII high‑frequency regulator used with TL‑D lamps. It covers overall parameters, operating settings, wiring requirements, temperature limits, dimensions, and compliance information.
Key technical data such as input voltage (220‑240 V, 50‑60 Hz), maximum current (45 A), power consumption (134 W), lamp life (50 000 h), and physical dimensions are listed, along with safety and EMI standards that the device meets. This manual is written in Chinese.
| Input voltage | 220‑240 V, 50‑60 Hz |
|---|---|
| Maximum output current | 45 A (max) |
| Rated lamp life | 50 000 h |
| Operating temperature (ambient) | 0 °C (min) – 50 °C (max) |
| Enclosure temperature range | -20 °C (min) – 50 °C (max) |
| Storage temperature range | -25 °C (min) – 80 °C (max) |
| Dimensions (A1) | 359 mm |
| Weight | 0.370 kg |
The regulator operates on 220‑240 V at 50‑60 Hz.
It can deliver up to 45 A maximum.
The lamp life is rated at 50 000 hours.
Ambient temperature must be between 0 °C and 50 °C; enclosure temperature between -20 °C and 50 °C; storage temperature between -25 °C and 80 °C.
