BHL 1000 L202 I is a high power ballast for HPL and HPI lamps, suitable for HID light sources, used in conjunction with an external trigger.

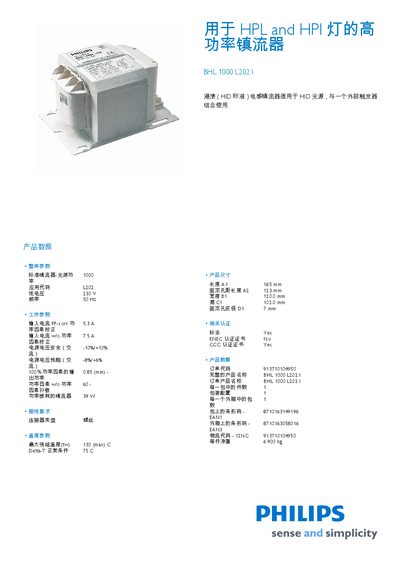

This manual details the electrical and mechanical parameters of the Philips BHL 1000 L202 high‑power ballast. It lists the operating voltage (230 V), frequency (50 Hz), rated current (5.3 A), and minimum power factor (0.85). Temperature limits are given, with a maximum operating temperature of 130 °C.
Physical dimensions are 165 mm × 123 mm × 102.0 mm, and the unit weighs 6.900 kg. Packaging information, bar‑code identifiers, and logistics codes are also included for inventory and shipping purposes. This manual is written in Chinese.
| Minimum Power Factor | 0.85 |
|---|---|
| Maximum Operating Temperature | 130 °C |
| Weight | 6.900 kg |
| Model | BHL 1000 L202 |
The minimum power factor is 0.85.
It weighs 6.900 kg.
