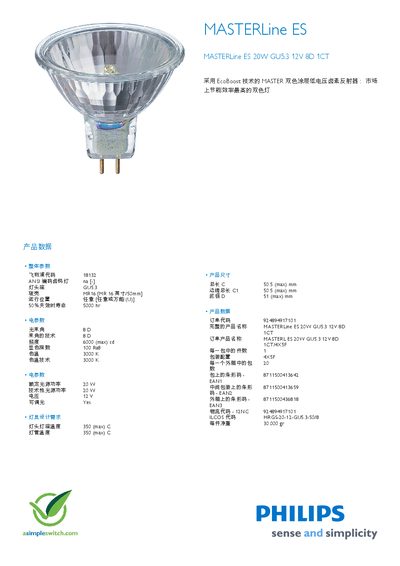

This document describes the features and characteristics of the product MASTERLine ES 20W GU5.3 12V 8D 1CT, including the use of EcoBoost technology, high energy efficiency, and dual-color coated low-voltage halogen reflector.
This manual describes the MASTERLine ES LED lamp, which uses a GU5.3 base, 20 W rated power and operates at 12 V. Key technical data such as beam angle (8D), luminous intensity (6000 cd max), colour rendering index (100 Ra8) and colour temperature (3000 K) are listed, along with lifetime and temperature limits.
Packaging information includes the part number (924894917101), barcode numbers, and weight (30 g per lamp). Copyright and compliance statements from Koninklijke Philips Electronics N.V. are also provided. This manual is written in Chinese.
| Rated power | 20 W |
|---|---|
| Lamp base | GU5.3 |
| Beam angle | 8D |
| Luminous intensity (max) | 6000 cd |
| Colour rendering index | 100 Ra8 |
| Colour temperature | 3000 K |
| Rated life (50% lumen maintenance) | 5000 hr |
| Maximum lamp temperature | 350 °C |
| Maximum socket temperature | 350 °C |
| Diameter | 51 mm (max) |
| Length | 50.5 mm (max) |
The lamp is rated at 20 W.
It uses a GU5.3 base.
The rated lifetime is 5000 hours.
