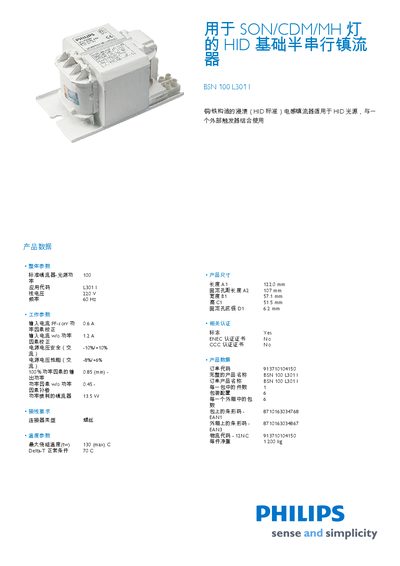

BSN 100 L301 I is a HID basic semi-series ballast for SON/CDM/MH lamps. It is a copper/iron construction impregnated (HID standard) inductor ballast suitable for HID light sources in combination with an external trigger.
This manual details the electrical and mechanical parameters of the Philips BSN 100 L301 HID ballast, including input voltage, current, power factor, and power consumption. It also lists safety requirements, temperature limits, and dimensional data for proper installation.
Packaging information, barcodes, and logistics codes are provided for inventory and shipping purposes, along with copyright and revision notices from Philips Electronics. This manual is written in Chinese.
| Minimum Power Factor | 0.85 (min) |
|---|---|
| Maximum Operating Temperature | 130 °C (max) |
| Dimensions (L×W×H×…) | 122.0 mm × 107 mm × 57.1 mm × 51.5 mm × 6.2 mm |
| Weight | 1.200 kg |
It operates at 220 V and 60 Hz.
The ballast measures 122.0 mm × 107 mm × 57.1 mm × 51.5 mm × 6.2 mm.
The minimum power factor is 0.85.
