MASTERLine ES 45W GU5.3 12V 8D 1CT with EcoBoost technology is the most energy efficient dual color lamp on the market

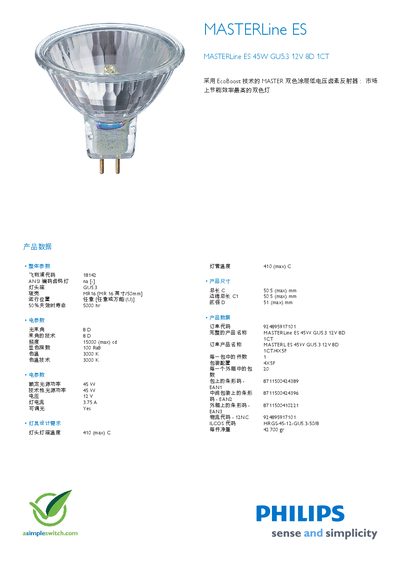

This manual lists the overall parameters of the MASTERLine ES lamp, including a GU5.3 base, 45 W rated power, 12 V input voltage, 3.75 A current, and an 8° beam angle. Light performance specifications such as 15 000 cd maximum luminous intensity, CRI 100, and 3000 K color temperature are also provided, along with a 5000‑hour rated lifetime at 50% lumen maintenance.
Packaging details are included, showing the product code (924895917101), barcodes (EAN1‑3), and packing configuration (4 × 5 F). The document also contains Philips copyright information and a reference to the Philips lighting website. This manual is written in Chinese.
| Rated power | 45 W |
|---|---|
| Input current | 3.75 A |
| Beam angle | 8° |
| Maximum luminous intensity | 15000 cd |
| Color rendering index | 100 Ra8 |
| Color temperature | 3000 K |
| Lamp base | GU5.3 |
| Rated lifetime | 5000 hr (50% lumen) |
| Maximum lamp temperature | 410 °C |
The lamp is rated at 45 W.
The lamp has an 8° beam angle.
The lamp is rated for 5000 hours at 50% lumen maintenance.
