MASTERLine ES 30W GU5.3 12V 24D 1CT MASTER Dual Colour coating low voltage halogen reflector with EcoBoost technology: The most energy efficient dual colour lamp on the market
The MASTERLine ES is a GU5.3 MR16 lighting module designed for 12 V operation. It features a 30 W rated power, 24° beam angle, 3000 K colour temperature and a colour rendering index of 100 Ra8, delivering up to 3150 cd of illumination.

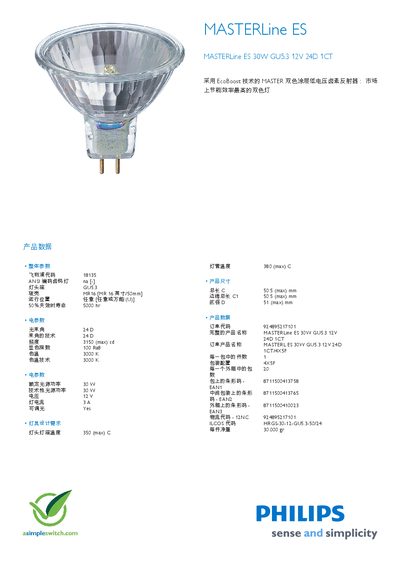

The sheet lists electrical parameters (12 V, 3 A), mechanical dimensions, packaging configuration (4 × 5F cartons, 20 units per outer box) and product identifiers such as EAN codes and the Philips part number 924895217101. This manual is written in Chinese.
| Rated light source power | 30 W |
|---|---|
| Beam angle | 24° |
| Luminous intensity (max) | 3150 cd |
| Colour rendering index | 100 Ra8 |
| Colour temperature | 3000 K |
| Rated lifetime (50% lumen maintenance) | 5000 hr |
| Base type | GU5.3 |
| Lamp size | MR16 |
| Maximum lamp temperature | 350 °C |
The rated light source power is 30 W.
The beam angle is 24 degrees.
