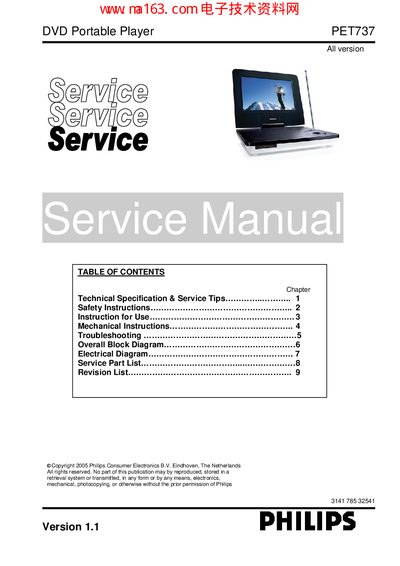

This manual is a service manual for Philips PET737 DVD portable player, which introduces the product's technical specifications, safety instructions, operating instructions, mechanical instructions, troubleshooting, overall block diagram, electrical diagram, service parts list and revision list.
The Philips PET737 service manual provides detailed technical specifications, safety guidelines, and step‑by‑step procedures for servicing the portable DVD player. It includes information on dimensions, power requirements, audio performance, battery details, and supported disc formats.
Additional sections cover region‑code configuration, firmware upgrade via CD‑ROM, extensive ESD protection measures, and a complete service part list with part numbers for adapters, remote controls, and antennas.
| Dimensions (W x H x D) | 158 x 210 x 39.5 mm |
|---|---|
| Weight | 0.48 kg ±5% |
| Power supply voltage | AC 100~240 V ±10% |
| Audio THD (20‑20 kHz) | ≤ 2 % |
| Battery capacity | 21 900 mAh |
