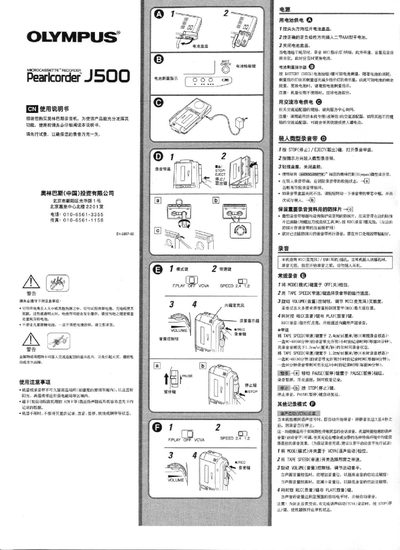

This manual provides step‑by‑step instructions for using the Olympus J500 handheld recorder, including safety warnings, battery installation, and how to load and operate the micro‑cassette tape. It also covers normal recording, voice‑activated recording, playback modes, and maintenance procedures.
Technical specifications such as channel configuration, tape speed options, speaker size, frequency response, power requirements, dimensions and weight are listed, along with troubleshooting tips for common issues like battery depletion and tape errors. This manual is written in Chinese.
| Channels | 2 channels, 1 mono |
|---|---|
| Drive method | 主导轴驱动系统 |
| Tape type | 微型录音带 |
| Tape speed | 2.4 cm/s or 1.2 cm/s |
| Speaker | 28 mm dynamic speaker |
| Frequency response | 400‑4,000 Hz (2.4 cm/s), 400‑3,000 Hz (1.2 cm/s) |
| Mic/Earphone jack impedance | 2.5 kΩ (mic), 8 Ω (earphone) |
| Maximum output | 200 mW (2.4 cm/s) |
| Power supply | 3 V DC |
| Battery | 2 × AAA (LR03) |
| Dimensions | 116 × 21 × 54 mm (H × D × W) |
| Weight | 129 g (incl. batteries) |
Open the battery compartment, insert two AAA batteries with the correct polarity, and close the cover.
Use the TAPE SPEED key to select either 2.4 cm/s or 1.2 cm/s.
Set the MODE switch to VCVA, adjust the volume level, then press REC and PLAY together.
