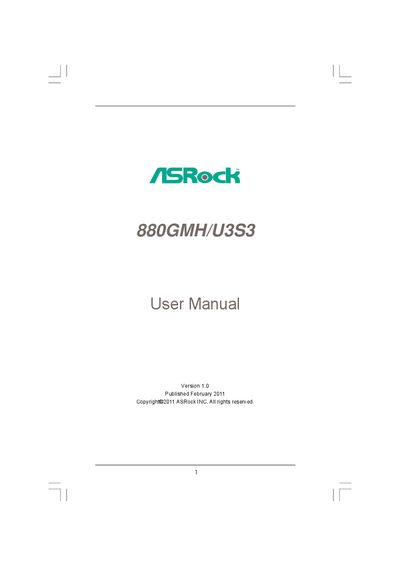

ASRock 880GMH/U3S3 Motherboard User Manual

880GMH/U3S3 User Manual is a user guide for ASRock 880GMH/U3S3 motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 58
File format: PDF
File size: 1.1 MB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: U3S3, 880GMH
MD5 checksum: 289AE56B5DF3C93FC98D75B2E8E784F5
PDF: ASRock 880GMH/U3S3 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock 880GMH/U3S3 Micro‑ATX motherboard, including package contents, hardware installation steps, and BIOS/UEFI settings. It also details the supported CPUs, memory types, expansion slots, and integrated graphics.

Additional sections describe driver installation, supported operating systems, overclocking precautions, and the utilities available on the Support CD. Safety notices, FCC compliance, and California battery disposal information are also included.

What's inside

Package Contents
Specifications
CPU Installation
Memory Installation
Expansion Slots
UEFI Setup Utility
Driver Installation Guide
Operating System Support
Overclocking Technology
Support CD

Specifications

Form Factor	Micro ATX (9.6" x 9.0")
CPU Socket	Socket AM3+ (supports AM3+ and AM3 processors)
Chipset	Northbridge AMD 880G, Southbridge AMD SB710
Audio Codec	Realtek ALC892, 7.1‑channel HD Audio
LAN Controller	Atheros AR8151 Gigabit Ethernet

Frequently asked questions

Which Windows operating systems are supported by this motherboard?

The motherboard supports Windows 7/7 64‑bit, Vista/ Vista 64‑bit, XP, XP Media Center, and XP 64‑bit.

What is the maximum amount of system memory the board can handle?

It can support up to 32 GB of DDR3 memory.

How many USB 3.0 ports are provided on the rear panel?

There are two USB 3.0 ports on the rear I/O panel.
