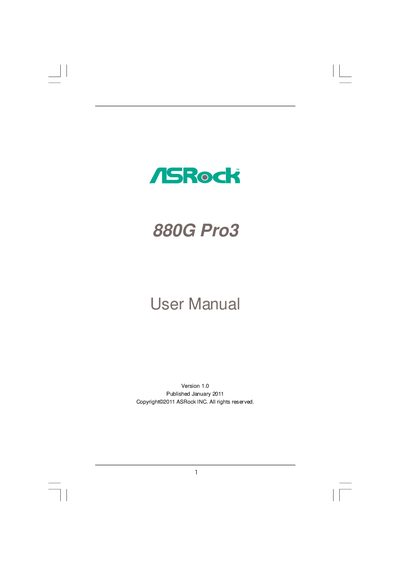

880G Pro3 User Manual
This manual introduces the ASRock 880G Pro3 ATX motherboard and guides users through hardware installation, BIOS configuration, and software support. It includes safety notices, FCC compliance information, and detailed specifications of the board’s components.
The document covers package contents, CPU and memory installation, expansion slot usage, dual‑monitor setup, BIOS UEFI features, and support CD utilities. It also provides instructions for installing Windows operating systems on large hard drives and troubleshooting tips.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | Socket AM3+ (supports AM3 as well) |
| Chipset | Northbridge AMD 880G, Southbridge AMD SB850 |
| Audio Codec | Realtek ALC892, 7.1 CH HD Audio |
| LAN | Atheros AR8151 Gigabit Ethernet |
| SATA3 Ports | 5 × 6 Gb/s connectors, RAID support |
| USB 3.0 Ports | 2 × USB 3.0 (Etron EJ168A) |
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, and XP/XP 64‑bit.
The motherboard can accommodate up to 32 GB of DDR3 memory.
Insert the CD; if autorun is disabled, open the BIN folder and double‑click ASSETUP.EXE to access the Drivers and Utilities menus.
