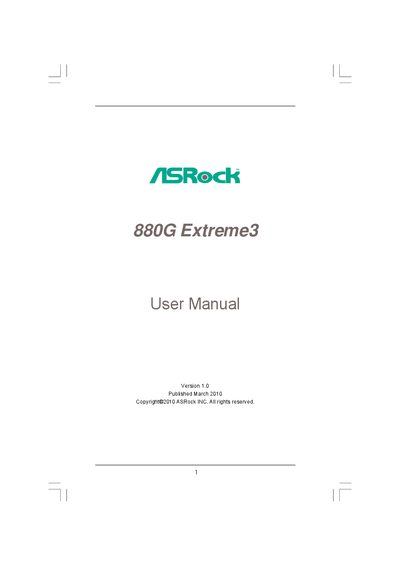

880G Extreme3 User Manual, introduces the features of this product.
This manual guides users through hardware installation, BIOS configuration, and software support for the ASRock 880G Extreme3 motherboard. It includes safety notices, FCC compliance information, and step‑by‑step procedures for CPU, memory, and peripheral installation.
Key features covered are the ATX form factor, AMD 880G chipset, integrated Radeon HD 4250 graphics, 7.1‑channel HD audio, Gigabit LAN, SATA3 with RAID and Hot‑Plug, and USB 3.0 connectivity. The BIOS setup utility section explains overclocking, power management, and hardware health monitoring.
| Form Factor | ATX (12.0‑in x 9.6‑in, 30.5 cm x 24.4 cm) |
|---|---|
| Audio | 7.1‑channel HD Audio, VIA VT2020 codec, 110 dB dynamic range |
| LAN | Gigabit LAN (Realtek RTL8111E) 10/100/1000 Mb/s |
| SATA Ports | 6 × SATA3 6.0 Gb/s, RAID 0/1/0+1/5, NCQ, AHCI, Hot‑Plug |
It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, Windows XP, XP Media Center, and XP 64‑bit.
The maximum supported system memory is 16 GB of DDR3.
