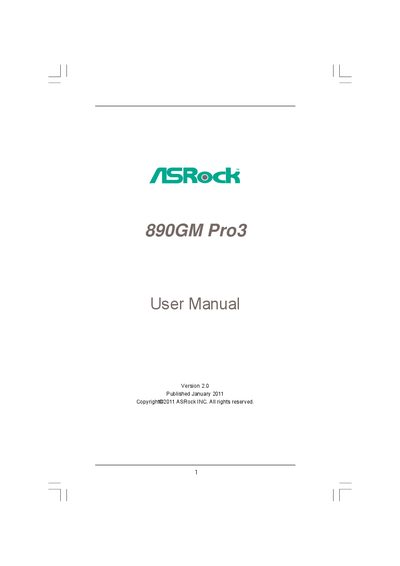

ASRock 890GM Pro3 User Manual

890GM Pro3 User Manual. Contains product features, specifications, usage methods, installation instructions and other content.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 981 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: 890GM
MD5 checksum: CF86206EBC777345CCF7996755D6D943
PDF: ASRock 890GM Pro3 User Manual PDF

About this manual

This manual guides users through hardware installation, including CPU, memory, and expansion cards, as well as detailed BIOS configuration using the UEFI Setup Utility. It also covers driver installation, supported operating systems, and special features such as RAID and overclocking.

Additional sections describe the motherboard’s rear panel connectors, USB 3.0 and SATA3 ports, audio and networking interfaces, and troubleshooting tips. The Support CD contents and contact information are provided for further assistance.

What's inside

Introduction
Package Contents
Specifications
CPU Installation
Memory Installation
Expansion Slots
UEFI Setup Utility
Software Support
OS Installation
Warranty and Disclaimer

Specifications

Form Factor	Micro ATX (9.6‑in x 9.6‑in)
CPU Socket	Socket AM3+ (compatible with AM3)
Chipset	Northbridge AMD 890GX, Southbridge AMD SB850
SATA3 Ports	5 × 6.0 Gb/s connectors, RAID 0/1/0+1/5
USB 3.0 Ports	2 × USB 3.0 ports (Etron EJ168A)

Frequently asked questions

Which operating systems are supported by the 890GM Pro3 motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, Windows XP, XP Media Center, and XP 64‑bit.

How many USB 3.0 ports does the motherboard provide?

The board includes two USB 3.0 ports.

What video output options are available on the 890GM Pro3?

Three VGA output options are provided: D‑Sub, DVI‑D, and HDMI.

Does the motherboard support RAID configurations?

Yes, the SATA3 ports support RAID 0, RAID 1, RAID 0+1, and RAID 5.
