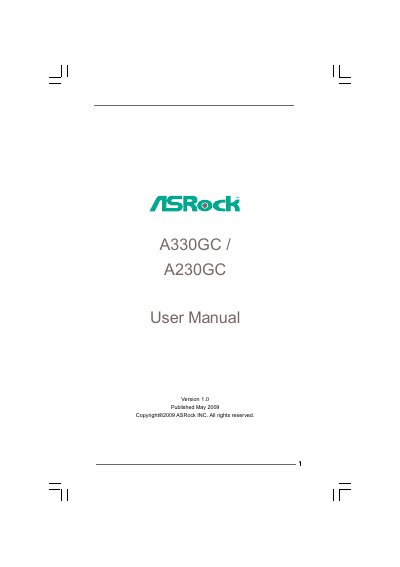

This document is the user manual for 11111 A330GC / A230GC published by ASRock INC. in May 2009. It provides detailed information about the features and characteristics of the product.
This manual covers the ASRock A330GC and A230GC Mini‑ITX motherboards. It includes an introduction, step‑by‑step hardware installation instructions, BIOS configuration details, and software support information.
The document also lists technical specifications such as supported CPUs, memory, expansion slots, graphics, audio, LAN, and I/O connectors, as well as safety and regulatory notices. This manual is written in Chinese.
| Form Factor | Mini‑ITX 6.7" x 6.7" (17.0 cm x 17.0 cm) |
|---|---|
| Supported CPUs | Intel Dual‑Core Atom 330 and Intel Atom 230 (1.6 GHz) |
| Chipset | Northbridge Intel 945GC, Southbridge Intel ICH7 |
| Memory | 2 DDR2 DIMM slots, up to 4 GB, DDR2‑533 non‑ECC |
| Audio | Realtek ALC662 5.1‑channel HD Audio |
| LAN | Realtek RTL8111DL Gigabit Ethernet (10/100/1000 Mb/s) |
| SATA Connectors | 2 SATAII 3.0 Gb/s ports (no RAID or hot‑plug) |
It supports the Intel Dual‑Core Atom 330 processor and the Intel Atom 230 processor (1.6 GHz).
The motherboard supports Microsoft Windows 2000, Windows XP, Windows XP 64‑bit, Windows Vista, and Windows Vista 64‑bit.
Two DDR2 DIMM slots allow up to 4 GB of non‑ECC DDR2‑533 memory.
A Realtek RTL8111DL Gigabit Ethernet controller with 10/100/1000 Mb/s support.
