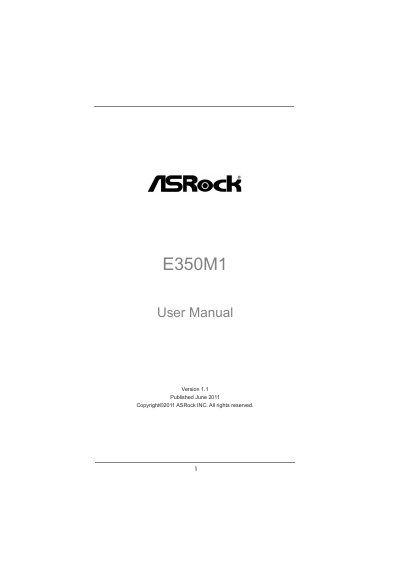

This manual introduces the E350M1 motherboard's various functions and usage methods, including motherboard pinout diagram, installation instructions, hardware installation, BIOS settings, and usage instructions.
This manual covers everything needed to install and configure the ASRock E350M1 Mini‑ITX motherboard, including package contents, hardware layout, and step‑by‑step installation of memory, storage, and peripherals. It also details the UEFI BIOS utility, safety cautions, and software support options.
Additional sections describe supported Windows operating systems, hot‑plug SATA3 functionality, and optional features such as the Remote Receiver, AIWI gaming utility, and power‑saving settings. The document ends with troubleshooting tips and contact information for technical support.
| Form Factor | Mini‑ITX 6.7" x 6.7" (17.0 cm x 17.0 cm) |
|---|---|
| CPU | AMD Dual‑Core Zacate E350/E350D APU |
| Chipset | AMD A50M |
| Memory Slots | 2 x DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| Expansion Slot | 1 x PCI Express 2.0 x16 (x4 mode) |
| Integrated Graphics | AMD Radeon HD 6310 |
| Audio Codec | Realtek ALC892 |
| LAN Controller | Realtek RTL8111E Gigabit LAN |
| SATA3 Connectors | 4 x 6.0 Gb/s ports (hot‑plug capable) |
The motherboard supports Windows 7/7 64‑bit, Vista TM/Vista TM 64‑bit, XP, XP Media Center, and XP 64‑bit.
The board provides six ready‑to‑use USB 2.0 ports and two additional USB 2.0 headers that support four more ports.
Yes, the motherboard includes Hot Plug and Hot Swap functions for SATA3 hard drives.
