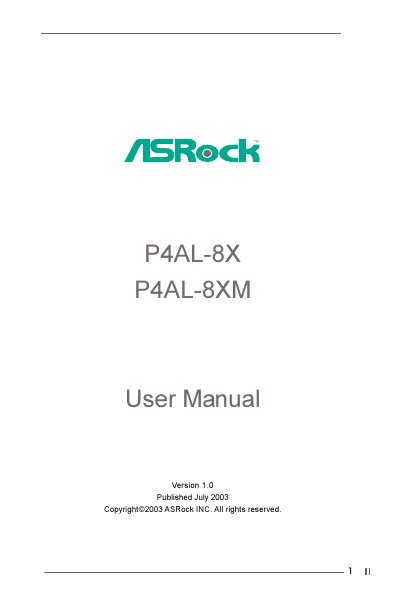

ASRock P4AL-8X / P4AL-8XM Motherboard User Manual

User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 28
File format: PDF
File size: 562 KB
Published: 15 March, 2012
Updated: 30 September, 2023
MD5 checksum: C76F55A47921FC3EFC3645782695FAF7
PDF: ASRock P4AL-8X / P4AL-8XM Motherboard User Manual PDF

About this manual

This manual introduces the ASRock P4AL-8X (ATX) and P4AL-8XM (Micro ATX) motherboards, lists package contents, and details the hardware layout, including CPU socket, memory slots, expansion slots, and I/O connectors. It also covers supported CPUs, chipsets, and peripheral interfaces.

The document guides users through installation procedures, BIOS setup options, security and power configuration, and software support via the ASRock I/OTM support CD. An appendix provides advanced BIOS settings for experienced users.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout (P4AL-8X)
Motherboard Layout (P4AL-8XM)
ASRock I/OTM Connectors
Installation
BIOS Setup
Software Support
Advanced BIOS Setup

Specifications

Form factor	ATX (12.0" x 7.8") for P4AL-8X; Micro ATX (9.6" x 7.8") for P4AL-8XM
CPU socket	Socket 478 for Intel Pentium 4 / Celeron processors
USB ports	4 rear USB 2.0 ports plus header for two additional ports

Frequently asked questions

How many IDE devices can be connected to the motherboard?

The motherboard can connect up to four IDE devices.

What is the default PCI latency timer value?

The default PCI latency timer is set to 32.
