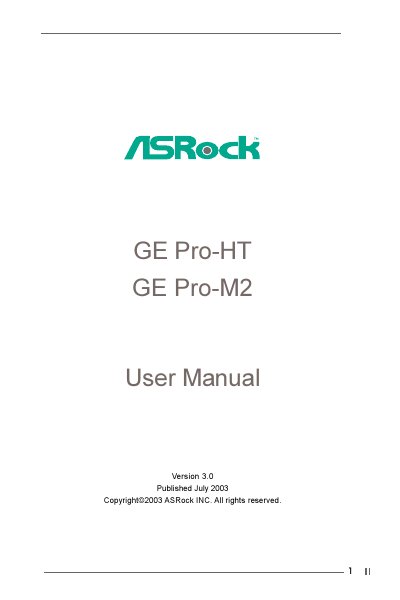

GE Pro-HT GE Pro-M2 User Manual is the user manual of ASRock's GE Pro-HT GE Pro-M2
This manual introduces the ASRock GE Pro-HT and GE Pro-M2 Micro ATX motherboards, detailing package contents, technical specifications, and board layouts for each model. It also describes the I/O connectors, chipset information, and supported CPUs.
The guide walks users through installation procedures, BIOS configuration, and software support, including power‑management settings, security passwords, and boot options. An appendix offers advanced BIOS features for experienced users.
| Form factor | Micro ATX (9.6" x 7.5", 24.4 x 19.1 cm) |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| North Bridge chipset (GE Pro-HT) | SiS 651 |
| North Bridge chipset (GE Pro-M2) | SiS 533/333 |
| IDE connectors | 2 IDE ports supporting ATA 133 / Ultra DMA Mode 6 |
| USB ports | 4 default USB 2.0 ports + header for 2 additional ports |
| LAN | 10/100 Ethernet (802.3u) |
| Audio | 5.1‑channel AC'97 audio |
Both boards use a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
The system will automatically shut down; ensure the CPU fan is functioning properly before restarting.
