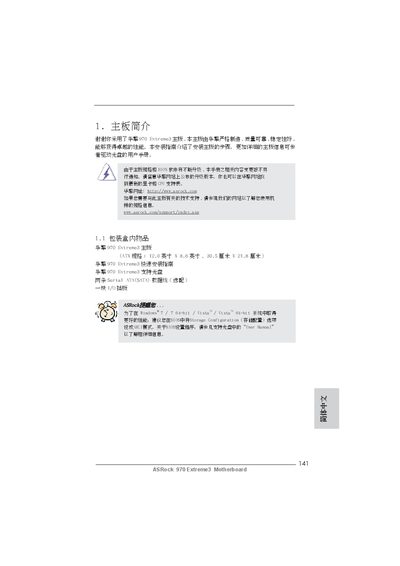

This manual provides step‑by‑step instructions for installing the ASRock 970 Extreme3 motherboard, including packaging contents, mounting, and BIOS configuration. It also details the hardware interfaces, supported CPUs, memory types, and peripheral connections.
Additional sections cover advanced features such as the Extreme Tuning Utility, SmartView, and power‑saving options, as well as safety information and regulatory compliance. This manual is written in Chinese.
| Form factor | ATX 12.0" x 8.6" |
|---|---|
| Chipset | AMD 970 (northbridge) / AMD SB950 (southbridge) |
| Maximum memory | 32 GB |
| SATA ports | 5 × SATA3 6 Gb/s (RAID, NCQ, AHCI) |
| BIOS | 32 Mb AMI UEFI Legacy BIOS |
It can accommodate up to 32 GB of DDR3 memory.
