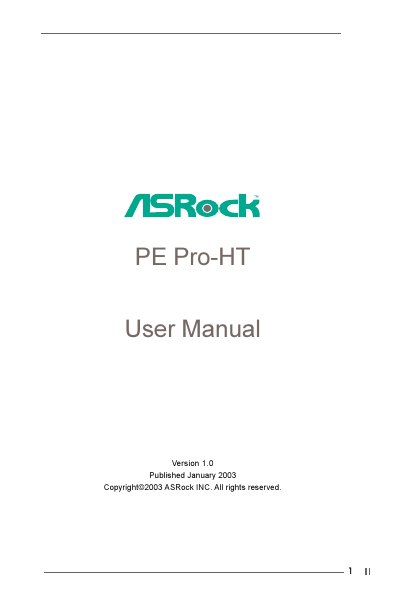

ASRock PE Pro-HT User Manual

PE Pro-HT User Manual is a user manual for ASRock PE Pro-HT.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 25
File format: PDF
File size: 538 KB
Published: 15 March, 2012
Updated: 30 September, 2023
MD5 checksum: C13088347C1CA811D9969B250547B35B
PDF: ASRock PE Pro-HT User Manual PDF

About this manual

This manual introduces the ASRock PE Pro-HT ATX motherboard, lists the package contents, and details the hardware layout. It guides DIY builders through installation, including CPU, memory, and expansion cards, and explains safety precautions.

The document also covers BIOS setup, security options, power management, and software support, with an appendix for advanced BIOS features. All instructions are illustrated with diagrams and step‑by‑step procedures.

What's inside

Introduction
Installation
BIOS Setup
Software Support
Advanced BIOS Appendix

Specifications

Form factor	ATX (12" x 9.6", 30.5 x 24.4 cm)
CPU socket	Socket 478 for Intel Pentium 4 / Celeron
Chipset	North Bridge SiS 645DXHT, South Bridge supports USB 2.0, ATA 133
PCI slots	6 PCI slots and 1 AGP slot

Frequently asked questions

How many PCI slots are on the PE Pro-HT motherboard?

The motherboard provides six PCI slots and one universal AGP slot.

What CPU socket does the PE Pro-HT motherboard use?

It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.

How many rear USB 2.0 ports are available?

There are four rear default USB 2.0 ports, plus a header for two additional ports.

How can a supervisor password be set in the BIOS?

Press on the Supervisor Password field and enter a 1‑to‑6 character alphanumeric password.
