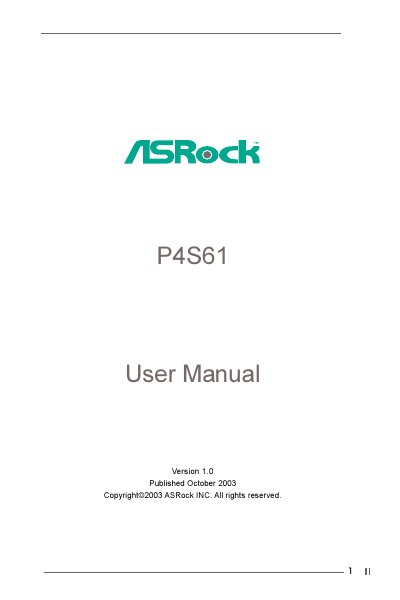

This document is the user manual for ASRock P4S61 motherboard, providing instructions and precautions for using the motherboard.
This manual covers everything needed to install and use the ASRock P4S61 Micro ATX motherboard, including package contents, detailed specifications, and a layout diagram of the board. It also explains the I/O ports, supported CPUs, memory configurations, and other hardware features.
The guide walks you through installation procedures, BIOS setup options, power management settings, and software support, with safety warnings and troubleshooting tips for common issues such as CPU overheating or incorrect jumper settings. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 8.4") |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 / Celeron |
| Chipset | North Bridge SiS 661FX, South Bridge SiS 963L |
| Memory Slots | 3 DDR DIMM slots, up to 3 GB total |
| LAN | 10/100 Ethernet, Wake‑On‑LAN supported |
| USB Ports | 6 USB 2.0 ports |
| Audio | 5.1‑channel AC’97 audio |
| PCI Slots | 3 PCI slots (spec 2.2) |
The P4S61 provides six USB 2.0 ports.
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
The system will automatically shut down; check that the CPU fan is functioning properly.
The motherboard includes three PCI slots.
