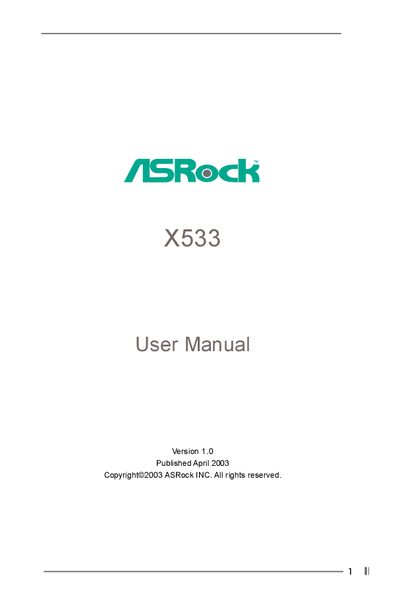

This manual introduces how to install and use the ASRock X533 motherboard.
This manual introduces the ASRock X533 ATX motherboard, lists the package contents, and details the board layout, connectors, and supported components. It also covers safety precautions and pre‑installation steps for DIY system builders.
Later sections guide users through BIOS configuration, hardware monitoring, and software support, including driver installation from the supplied support CD. The document ends with contact information and references to updated resources on the ASRock website. This manual is written in Chinese.
| Form factor | ATX (12.0" x 9.6") |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| Memory slots | 2 DDR slots (max 2 GB) and 2 SDRAM slots (max 2 GB) |
| IDE ports | 2 IDE connectors supporting ATA133 / Ultra DMA 6 |
| USB ports | 4 rear USB 2.0 ports plus header for 2 additional ports |
| LAN | 10/100 Ethernet (802.3u) with Wake‑On‑LAN support |
The X533 supports Intel Pentium 4 and Celeron processors that use Socket 478.
The board provides four rear USB 2.0 ports and a header for two additional USB 2.0 ports.
Updated files are available on the ASRock website at http://www.asrock.com.
