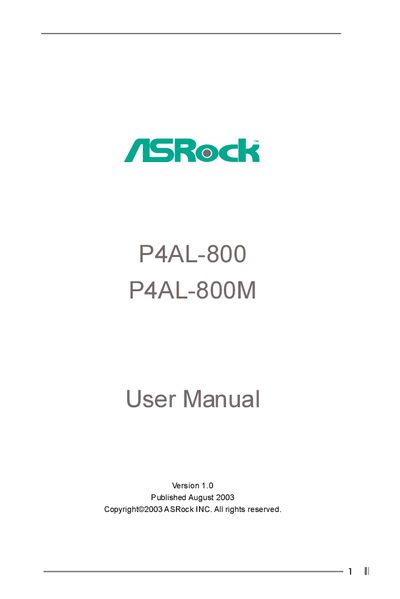

P4AL-800 P4AL-800M User Manual, introduces the product features and characteristics.
This manual covers the ASRock P4AL-800 (ATX) and P4AL-800M (Micro ATX) motherboards. It includes package contents, detailed specifications, layout diagrams, and the ASRock I/OTM connector information.
The guide walks you through installation procedures, BIOS configuration, power‑management options, and software support on the included support CD. An appendix provides advanced BIOS settings for experienced users.
| Form factor | ATX (12.0" x 7.8") |
|---|---|
| CPU socket | Socket 478 |
| North Bridge chipset | A800N |
| Memory slots | 3 DDR DIMM slots |
| Maximum memory | 3.5 GB |
| IDE ports | 2 ATA133 IDE ports |
| USB ports | 4 USB 2.0 ports (plus header) |
| LAN speed | 10/100 Mbps Ethernet |
| Audio channels | 5.1 channels |
It uses a Socket 478 for Intel® Pentium 4 or Celeron processors.
The board provides four default USB 2.0 ports and an additional header for two more ports.
Both models support up to 3.5 GB of memory across three DDR DIMM slots.
The P4AL-800M uses a Micro ATX form factor measuring 9.6" x 7.8".
