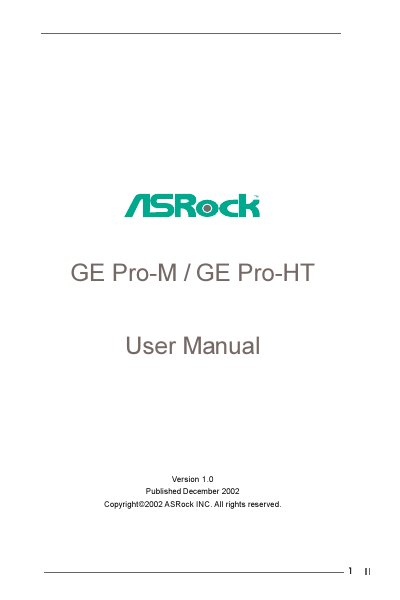

GE Pro-M/GE Pro-HT User Manual
This manual introduces the ASRock GE Pro-M and GE Pro-HT Micro ATX motherboards, detailing package contents, hardware layout, and key specifications such as CPU socket, chipset, memory slots, and I/O connectors. It also offers guidance for safe handling and pre‑installation precautions.
The document walks users through CPU, memory, and peripheral installation, BIOS setup menus, and advanced configuration options. Appendices cover advanced BIOS features, security settings, power management, and boot options. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| Chipset (North Bridge) | SiS 651 |
| USB ports | 4 default USB 2.0 ports + header for 2 additional ports |
| LAN | 10/100 Ethernet with Wake‑On‑LAN |
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
The board has four built‑in USB 2.0 ports and a header that supports two additional ports.
The boards use an AMI legal BIOS with Plug‑and‑Play and ACPI 1.1 compliance.
