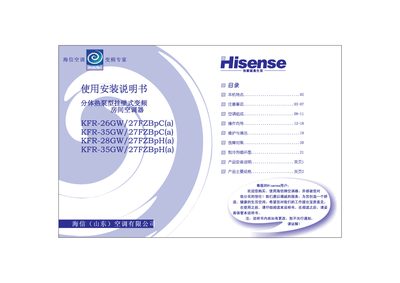

This manual provides step‑by‑step instructions for installing the Hisense KFR‑26GW/27FZBpC(a) split‑type heat‑pump air conditioner. It covers site preparation, mounting of indoor and outdoor units, refrigerant piping, electrical wiring, and safety precautions.
The guide also includes operation basics, maintenance tips, fault‑diagnosis procedures, and the main technical specifications of the unit. Follow the illustrated diagrams and safety warnings to ensure a reliable and safe installation. This manual is written in Chinese.
| Power supply voltage | AC 220 V |
|---|
Ensure the installation site has reliable grounding, an independent leakage‑protection device, and overload protection. Keep the unit away from flammable materials and verify that the drainage pipe is clear.
Connect the indoor and outdoor units with the inter‑unit piping, matching the numbered connectors on the circuit board as shown in the wiring diagrams. Tighten all fittings securely to avoid leaks.
When the indoor unit cannot receive the remote signal, the displayed temperature may be the ambient temperature around the indoor unit, which can differ from the remote’s reading.
