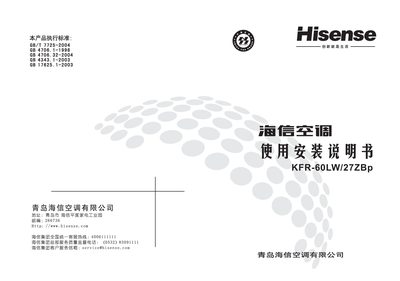

This is a user manual for a certain air conditioner
This guide provides safety warnings, installation requirements, and step‑by‑step procedures for the Hisense KFR‑60LW/27ZBp air conditioner. It explains how to verify power voltage, connect refrigerant piping, and ensure proper grounding before commissioning the unit.
The manual also describes the components of the indoor and outdoor units, operation panel functions, and technical specifications such as cooling capacity, energy efficiency ratios, and noise levels. Test methods for performance verification are included for qualified personnel. This manual is written in Chinese.
| Model | KFR-60LW/27ZBp |
|---|---|
| Rated Power Voltage | AC 220V (178‑250V) |
| Rated Cooling Capacity | 6.0 kW (1.7‑3.0‑6.5 kW) |
| Rated Heating Capacity | 7.5 kW (1.6‑3.5‑10.0 kW) |
| SEER (Cooling Efficiency) | 3.74 W/W |
| HSPF (Heating Efficiency) | 2.70 W/W |
| Indoor Noise Level | 41 dB(A) – 46 dB(A) |
| Outdoor Noise Level | 51 dB(A) – 57 dB(A) |
| Indoor Unit Weight | 38.0 kg |
| Outdoor Unit Weight | 52.0 kg |
The unit’s rated cooling capacity ranges from 1.7 kW (minimum) to 6.5 kW (maximum), with a nominal value of 6.0 kW.
When the high‑efficiency button is pressed, the LED lights to show the unit is running at maximum power for 15 minutes before automatically returning to the previous mode.
