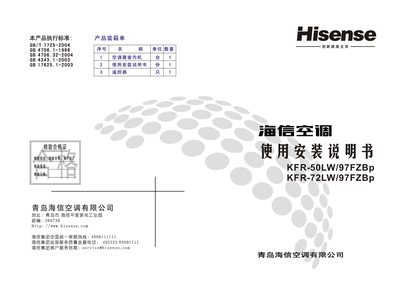

The document includes instructions for using the KFR-50LW/97FZBp and KFR-72LW/97FZBp products. The products have multiple functions, such as temperature adjustment and switch control.
This manual provides safety warnings, installation guidelines, and detailed operating instructions for the Hisense KFR‑50LW/97FZBp and KFR‑72LW/97FZBp air‑conditioner models. It explains how to connect power, set up indoor and outdoor units, and use the remote control and LCD panel to select cooling, heating, de‑humidification, and other functions.
The document also lists the main technical specifications, such as rated voltage, cooling/heating capacities, energy‑efficiency ratios (SEER/HSPF), noise levels, and recommended electrical protections. A trial‑run procedure is included to verify correct installation before regular use. This manual is written in Chinese.
| Model | KFR-50LW/97FZBp / KFR-72LW/97FZBp |
|---|---|
| Rated cooling capacity (max) | 6.6 kW (KFR‑50) / 8.0 kW (KFR‑72) |
| Rated heating capacity (max) | 9.0 kW (KFR‑50) / 11.0 kW (KFR‑72) |
| SEER (cooling seasonal energy efficiency) | 4.55 W/W (KFR‑50) / 4.19 W/W (KFR‑72) |
| HSPF (heating seasonal performance factor) | 3.00 W/W (KFR‑50) / 2.80 W/W (KFR‑72) |
| Indoor unit noise level | 33 dB(A) – 44 dB(A) |
Installation must be performed by a qualified installation technician according to the instructions in the manual.
Verify that the household or office power voltage matches the voltage printed on the unit’s nameplate (typically 220 V, 178‑250 V).
Turn on the power, switch the remote control to the cooling mode, press the run/stop button, and set the desired temperature.
