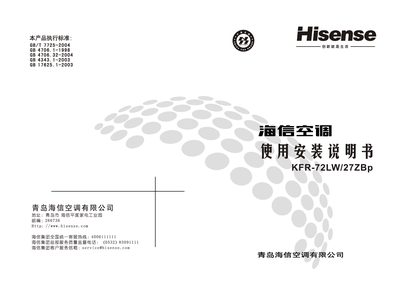

This is a user manual for an air conditioner
This guide provides step‑by‑step instructions for installing the Hisense KFR‑72LW/27ZBp air conditioner, including safety warnings, required electrical specifications, and proper placement of indoor and outdoor units. It also explains the functions of the remote control and the display panel.
Technical specifications, performance data, and test procedures required for certification are listed in the final sections, helping qualified installers verify correct operation and compliance with national standards. This manual is written in Chinese.
| Model | KFR-72LW/27ZBp |
|---|---|
| Rated voltage | AC 220V |
| Voltage range | AC 178‑250V |
| Heating capacity (min/medium/max) | 2.5 kW / 4.5 kW / 9.0 kW |
| Cooling power input (min/medium/max) | 1.10 kW / 1.15 kW / 3.60 kW |
| Heating power input (min/medium/max) | 1.00 kW / 1.35 kW / 4.68 kW |
| SEER (cooling efficiency) | 3.65 W/W |
| HSPF (heating efficiency) | 2.50 W/W |
| Indoor noise level | 43 dB(A)‑49 dB(A) |
| Outdoor noise level | 56 dB(A)‑60 dB(A) |
| Weight (indoor/outdoor) | 36 kg / 69 kg |
The unit is rated for AC 220 V.
Installation must be performed by qualified personnel, the site must have proper grounding, and the power supply must match the unit’s rated voltage.
