KFR-72LW/36ZBp is a product of Gree. It is a central air conditioner.

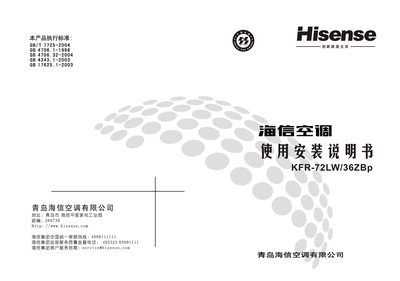

This manual provides step‑by‑step installation instructions for the Hisense KFR‑72LW/36ZBp split‑type air conditioner. It includes safety warnings, required tools, wiring guidelines, and recommendations for proper placement of indoor and outdoor units.
The document also describes the components of the system, explains the remote controller functions, and lists the product’s technical specifications such as power rating, cooling/heating capacity, and noise levels. This manual is written in Chinese.
| Model | KFR-72LW/36ZBp |
|---|---|
| Rated power supply voltage | 220 V |
| Applicable voltage range | 178 V‑250 V AC |
| Rated frequency | 50 Hz |
| Cooling capacity (min/mid/max) | 7.2 kW (2.5/3.6/17.8 kW) |
| Heating capacity (min/mid/max) | 9.0 kW (2.5/4.5/10.9 kW) |
| SEER | 3.65 W/W |
The applicable power voltage range is 178 V‑250 V AC.
The rated cooling capacity is 7.2 kW (minimum 2.5 kW, middle 3.6 kW, maximum 17.8 kW).
Installation should be performed by qualified technicians, the power voltage must match the name‑plate, a reliable grounding system is required, and the unit must not be placed near seawater or sulfur‑containing gases.
The unit is controlled with a remote controller that has an LCD display and buttons for power on/off, temperature setting, mode selection, wind speed, and other functions.
