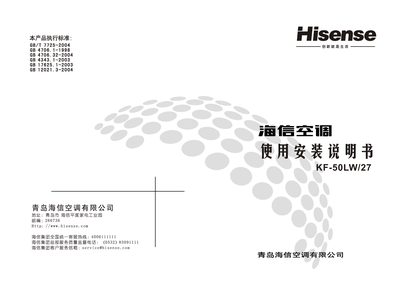

This manual provides step‑by‑step instructions for installing the Hisense KF‑50LW/27 air‑conditioning unit. It includes safety precautions, required tools, and preparation before mounting the indoor and outdoor units.
The guide also details the control panel functions, wiring diagrams, and final checks to ensure proper operation. Technical specifications and troubleshooting tips are listed at the end of the document. This manual is written in Chinese.
| Model | KF-50LW/27 |
|---|---|
| Rated Cooling Capacity | 5.0 kW |
| Rated Voltage | 220 V |
| Rated Frequency | 50 Hz |
| Indoor Fan Noise (min) | 37 dB(A) |
| Outdoor Unit Noise | 54 dB(A) |
| Indoor Unit Weight | 35.0 kg |
| Outdoor Unit Weight | 38.0 kg |
The model number is KF‑50LW/27.
The unit is rated for 5.0 kW of cooling.
The air conditioner requires a 220 V power supply.
The indoor unit weighs 35.0 kg and the outdoor unit weighs 38.0 kg.
