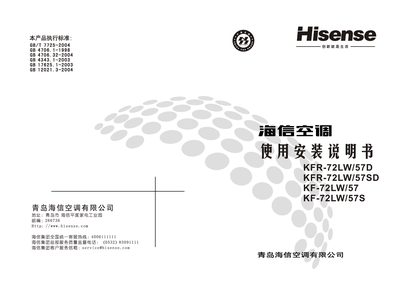

This document is the installation instructions of KFR-72LW/57D, KFR-72LW/57SD, KF-72LW/57, KFR-72LW/57S 12-15kw 1-2hp air conditioner indoor unit
This manual provides step‑by‑step instructions for installing Hisense split‑type air‑conditioners of the KFR‑72LW/57 series. It includes safety warnings, required tools, wiring diagrams, and commissioning procedures to ensure correct and safe operation.
The document also lists the technical specifications of each model, describes the available operation modes (automatic, cooling, heating, dehumidify, fan), and gives maintenance and troubleshooting tips for field technicians and end users. This manual is written in Chinese.
| Rated cooling capacity | 7.2 kW |
|---|---|
| Rated power consumption | 2.78 kW |
| Energy Efficiency Ratio (EER) | 2.59 |
| Coefficient of Performance (COP) | 2.98 |
| Operating voltage | 220 V / 380 V |
| Frequency | 50 Hz |
| Indoor noise level | 45 dB(A) – 50 dB(A) |
Each model in the series has a rated cooling capacity of 7.2 kW.
The units can be powered from 220 V or 380 V AC.
The air conditioner provides automatic, cooling, heating, dehumidify and fan modes.
