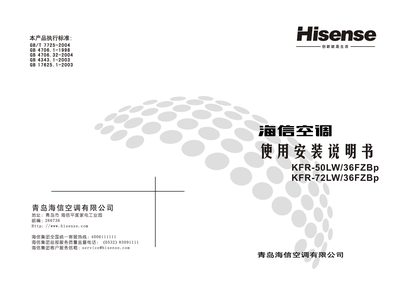

This is a PDF file that contains the instructions for the KFR-50LW/36FZBp and KFR-72LW/36FZBp air conditioners.
This manual provides detailed instructions for safely installing the Hisense KFR-50LW/36FZBp and KFR-72LW/36FZBp split‑type air conditioners. It includes safety warnings, required tools, wiring guidelines, and the proper positioning of indoor and outdoor units.
The document also describes the components of the system, remote‑control functions, trial‑run procedures, and the main technical specifications such as rated voltage, power, cooling capacity, and noise levels. This manual is written in Chinese.
| Rated power supply voltage | AC 220V |
|---|---|
| Rated power supply frequency | 50 Hz |
| Cooling capacity (KFR‑50LW) | 5.0 kW (1.5/2.5/6.5 kW) |
| Heating capacity (KFR‑72LW) | 9.0 kW (2.5/4.5/10.9 kW) |
| SEER (cooling efficiency) | 4.35 W/W |
| HSPF (heating efficiency) | 2.95 W/W |
| Indoor unit noise level | 33 dB(A) – 44 dB(A) |
Verify that the site’s power voltage matches the voltage printed on the unit’s nameplate, ensure a qualified installer performs the work, and confirm that reliable grounding and protective devices are in place.
