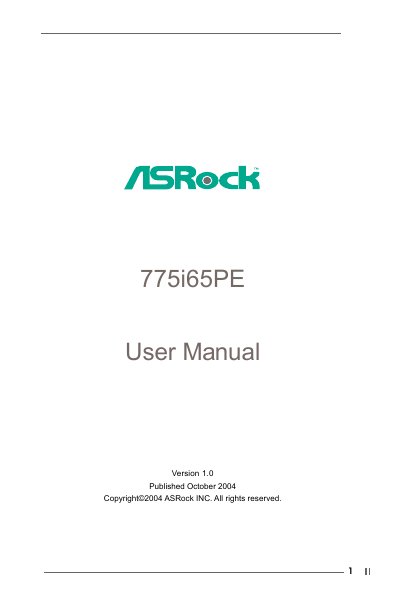

ASRock 775i65PE Motherboard User Manual

775i65PE User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 37
File format: PDF
File size: 777 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: 775I65PE
MD5 checksum: 486C90368831CC97092A7B695BEA159B
PDF: ASRock 775i65PE Motherboard User Manual PDF

About this manual

This manual introduces the ASRock 775i65PE ATX motherboard, its package contents, and key specifications. It guides users through safe installation, component mounting, and connector connections.

The document also covers the BIOS Setup Utility with detailed menu explanations, security settings, and boot configuration, as well as software support including drivers, utilities, and a live demo for LGA 775 CPU installation.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Boot Screen
Security Screen

Specifications

Form Factor	ATX (12.0‑in x 9.0‑in)
CPU Socket	775‑Pin socket, supports Intel Pentium 4 / Celeron
North Bridge Chipset	Intel 865PE
South Bridge Chipset	Intel ICH5
SATA Support	Up to 2 SATA devices at 1.5 Gb/s
USB Ports	8 USB 2.0 ports
PCI Slots	5 PCI slots (PCI 2.3)
AGP Slot	1 AGP slot, 1.5 V, 8X/4X
Audio	7.1‑channel AC’97 audio

Frequently asked questions

How many USB 2.0 ports are provided on the ASRock 775i65PE motherboard?

The motherboard includes eight USB 2.0 ports.

What CPU socket does the ASRock 775i65PE motherboard use?

It uses a 775‑Pin socket that supports Intel Pentium 4 and Celeron processors.

Which Windows operating systems are supported by this motherboard?

It supports Microsoft Windows 98 SE, ME, 2000, and XP.
