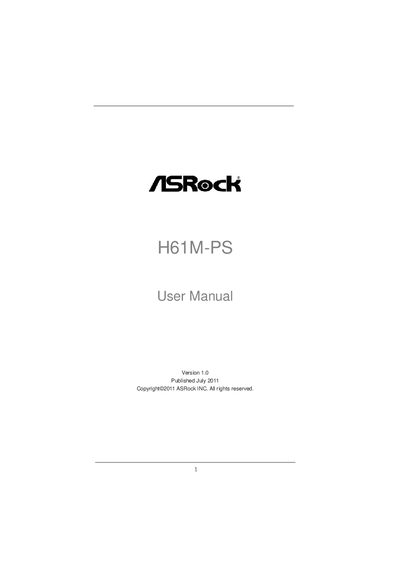

This is a user manual for H61M-PS, introducing the features and characteristics of the product.
This manual introduces the ASRock H61M-PS Micro ATX motherboard, covering package contents, hardware installation, and step‑by‑step procedures for CPU, memory, and expansion cards. It also explains BIOS/UEFI setup, system health monitoring, and software support via the included Support CD.
Detailed specifications such as supported CPUs, memory capacity, expansion slots, and I/O connectors are listed, along with guidance for installing Windows operating systems, including large‑capacity drives using UEFI and GPT. The document also points to the ASRock website for driver updates and additional resources.
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU Support | 2nd Generation Intel Core i7/i5/i3 LGA1155 |
| Chipset | Intel H64 |
| SATA Connectors | 4 x SATA2 3.0 Gb/s (NCQ, AHCI, Hot‑Plug) |
| LAN | Gigabit LAN (Atheros AR8151) |
| Audio | 5.1‑channel HD Audio (VIA VT1705) |
| USB Ports | 4 x USB 2.0 rear, 2 x USB 2.0 headers |
| BIOS | 32 Mb AMI BIOS with UEFI GUI |
The motherboard supports up to 16 GB of DDR3 memory.
It supports 2nd‑generation Intel Core i7, i5, and i3 processors in the LGA1155 socket.
