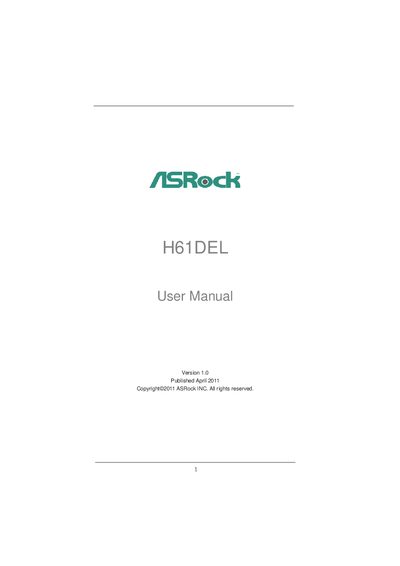

This document is the user manual for the H61DEL motherboard published by ASRock INC. It describes the features and characteristics of the motherboard.
This manual covers the H61DEL motherboard’s hardware layout, installation steps, BIOS (UEFI) configuration, and software support. It includes package contents, detailed specifications, and guidance for installing operating systems and drivers.
The document also describes the rear I/O panel, power connectors, and troubleshooting information, with references to the support CD utilities and contact details for technical assistance.
| Form Factor | ATX 12.0" x 6.8" |
|---|---|
| CPU Socket | LGA1155 |
| Chipset | Intel® H64 |
| Memory Slots | 2 DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| PCI Express Slots | 1 × PCIe 2.0 x16, 5 × PCIe 2.0 x1 |
| SATA Connectors | 4 × SATA2 3.0 Gb/s |
| LAN Controller | Realtek RTL8111E Gigabit |
| Audio Codec | VIA® VT1705 5.1 CH HD Audio |
| Rear USB Ports | 6 × USB 2.0 |
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, and XP/XP 64‑bit.
The rear panel provides six USB 2.0 ports.
The board can accommodate up to 16 GB of DDR3 memory.
It includes four SATA2 3.0 Gb/s connectors with NCQ, AHCI, and Hot‑Plug support.
