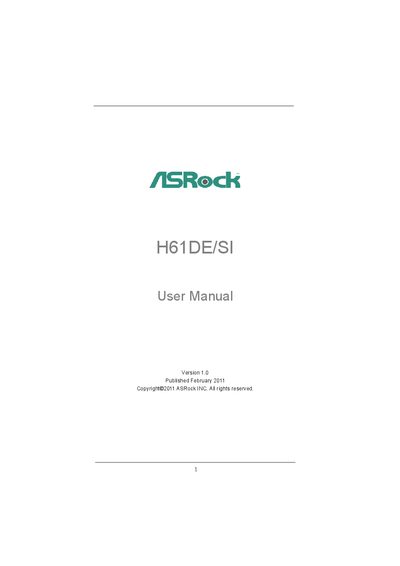

H61DE/SI User Manual
This manual covers everything needed to install and configure the ASRock H61DE/SI motherboard, including package contents, hardware installation steps, BIOS/UEFI configuration, and driver installation. It also lists detailed technical specifications and safety notices.
Additional sections describe the rear I/O panel, supported operating systems, and how to use the support CD utilities. The document ends with instructions for installing Windows on drives larger than 2 TB using the UEFI BIOS.
| Form Factor | ATX (12.0‑in x 8.6‑in) |
|---|---|
| Chipset | Intel H61 |
| Memory Slots | 4 x DDR3 DIMM |
| Maximum Memory | 16 GB |
| Graphics | Intel HD Graphics 2000/3000 |
| Audio Codec | Realtek ALC887 (7.1 CH HD Audio) |
| LAN | Atheros AR8151 Gigabit Ethernet |
| SATA Connectors | 4 x SATA2 3.0 Gb/s (NCQ, AHCI, Hot‑Plug) |
| BIOS | 32 Mb AMI BIOS with UEFI GUI support |
The board supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP, and XP 64‑bit.
It supports DDR3 non‑ECC, un‑buffered memory at 1333 MHz or 1066 MHz, up to a maximum of 16 GB.
