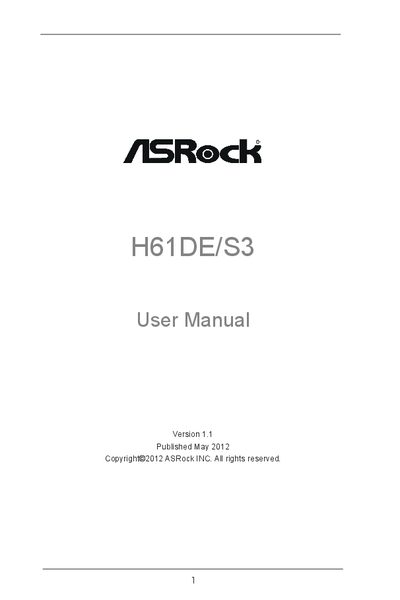

This manual guides users through hardware installation, including CPU, memory, and expansion slot setup, as well as detailed instructions for connecting peripherals and configuring the UEFI BIOS. It also covers operating‑system installation, driver installation, and the utilities provided on the support CD.
Additional sections describe the motherboard specifications, BIOS features, and safety notices, with troubleshooting tips and contact information for technical support.
| Form Factor | ATX (12.0" x 8.6") |
|---|---|
| CPU Socket | LGA1155 |
| Chipset | Intel H61 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| LAN Controller | Atheros AR8151 Gigabit LAN |
| Audio Codec | Realtek ALC887 (7.1 CH HD Audio) |
| Rear USB Ports | 6 × USB 2.0 |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
There are six USB 2.0 ports on the rear I/O panel.
The board uses an Atheros AR8151 Gigabit Ethernet controller.
It provides two SATA 3 6 Gb/s connectors.
