ASRock H67M-GE Motherboard features a Micro ATX form factor, supports second generation Intel Core i7/i5/i3 processors, and comes equipped with a 4+1 power phase design and Intel H67 chipset, supports dual-channel DDR3 memory technology, supports 32GB system capacity, and has an integrated Intel HD Graphics 2000/3000 graphics card that can output to a resolution of up to 1920x1200 @ 60Hz.

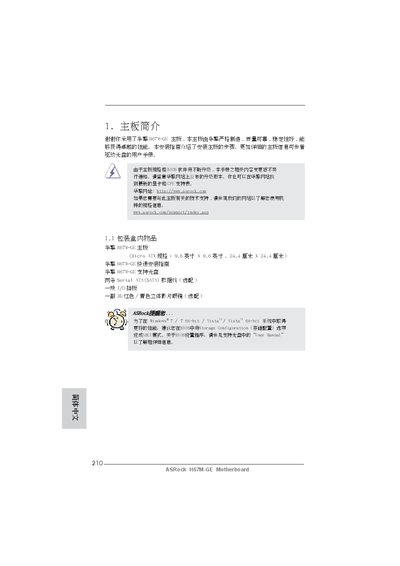

This guide provides step‑by‑step instructions for installing the ASRock H67M‑GE motherboard, including safety precautions, CPU and memory installation, and connecting peripherals. It also explains BIOS settings, SATA/RAID configuration and driver installation procedures.
Additional sections describe the board’s specifications, supported operating systems, and built‑in utilities such as ASRock Extreme Tuning Utility, Instant Flash and AIWI. The document ends with regulatory information and environmental compliance details. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU socket | LGA1155 (2nd‑gen Intel Core i7/i5/i3) |
| Power phases | 4 + 1 |
| Memory type | DDR3, dual‑channel |
| Maximum memory | 32 GB |
| DIMM slots | 4 DDR3 DIMM slots |
| PCI Express slots | 1 × PCIe 2.0 x16, 2 × PCIe x1, 1 × PCI |
| Integrated graphics | Intel HD Graphics 2000/3000, HDMI/DVI‑D/VGA outputs |
| Audio codec | Realtek ALC892, 7.1‑channel high‑fidelity |
| LAN controller | Realtek RTL8111E, Gigabit Ethernet |
| USB ports | 4 × USB 2.0, 2 × USB 3.0 |
| USB 3.0 ports | 2 × USB 3.0 (Etron EJ168A) |
| SATA ports | 2 × SATA3 6 Gb/s, 3 × SATA2 3 Gb/s |
It uses an LGA1155 socket for second‑generation Intel Core i7, i5 and i3 processors.
The board provides four DDR3 DIMM slots.
Up to 32 GB of DDR3 memory can be installed.
It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
