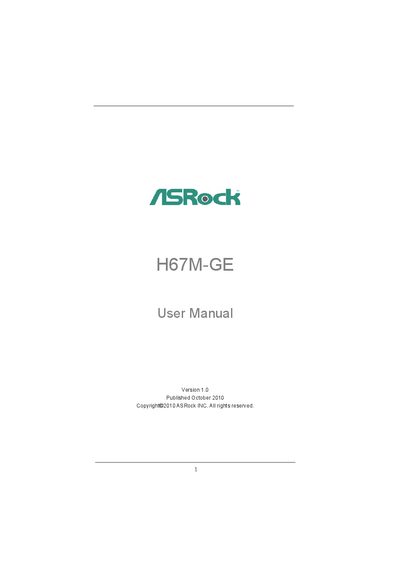

ASRock H67M-GE User Manual

This manual introduces the functions and features of the H67M-GE motherboard, such as expansion interfaces, hardware design, and usage instructions.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 62
File format: PDF
File size: 1.3 MB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: H67M-GE
MD5 checksum: 5E96FE47C6CDD417A1F5E9D9862E9F04
PDF: ASRock H67M-GE User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock H67M‑GE motherboard, including package contents, hardware installation steps, and BIOS/UEFI setup. It also details supported operating systems, driver installation, and troubleshooting tips.

Additional sections describe the motherboard’s I/O panel, networking, audio, storage interfaces, and overclocking warnings, with links to the support CD utilities and online resources.

What's inside

Package Contents
Specifications
Installation
UEFI Setup Utility
Software Support
BIOS Features
I/O Panel
LAN
SATA & USB Ports
Overclocking Warning

Specifications

Form Factor	Micro ATX (9.6 in × 9.6 in)
Chipset	Intel H67
Integrated Graphics	Intel HD Graphics 2000/3000
Audio Codec	Realtek ALC892, 7.1 CH HD Audio
LAN	Gigabit Ethernet (Realtek RTL8111E)
BIOS	64 Mb AMI BIOS with UEFI GUI

Frequently asked questions

Which Windows operating systems are supported by the H67M‑GE motherboard?

The motherboard supports Microsoft Windows 7, Windows 7 64‑bit, Windows Vista, Vista 64‑bit, Windows XP and XP 64‑bit.

How do I enable AHCI mode for SATA devices?

Press or during POST, go to Advanced → Storage Configuration, and set SATA Mode to AHCI.

What is the maximum amount of memory this motherboard can handle?

The board can support up to 32 GB of DDR3 memory.

Download PDF (1.3 MB)
