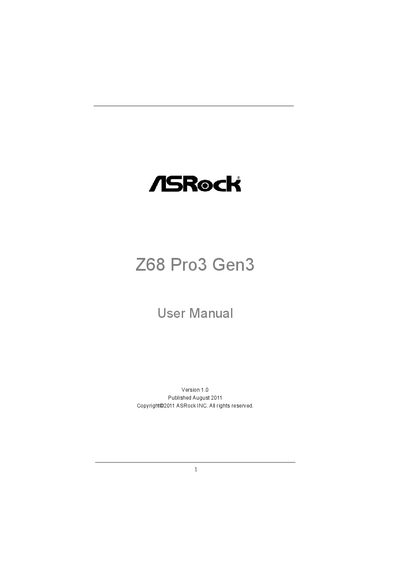

ASRock Z68 Pro3 Gen3 User Manual
This manual covers everything needed to install and configure the ASRock Z68 Pro3 Gen3 motherboard, including package contents, CPU and memory installation, expansion slot usage, and dual‑monitor features. It also explains the UEFI BIOS setup utility, driver installation, and operating‑system support.
Additional sections describe the rear panel I/O, unique ASRock features such as Extreme Tuning Utility, and troubleshooting steps for Windows installation and driver updates.
| Form Factor | ATX (12.0" x 7.5") |
|---|---|
| Chipset | Intel® Z68 |
| Memory Slots | 4 x DDR3 DIMM, up to 32 GB |
| Maximum Memory Capacity | 32 GB |
| Graphics Outputs | D‑Sub, DVI‑D, HDMI |
| Audio Codec | Realtek ALC892 (7.1 CH HD Audio) |
| LAN | Gigabit Ethernet (10/100/1000 Mb/s) |
| BIOS | 64 Mb AMI UEFI BIOS |
It uses a 64 Mb AMI BIOS with UEFI support and a graphical interface.
The board includes two rear USB 3.0 ports.
The motherboard supports up to 32 GB of DDR3 memory.
It provides a Gigabit Ethernet controller supporting 10/100/1000 Mb/s.
