ASRock Z68 Pro3 motherboard adopts all solid capacitor design, supports second generation Intel Core i7/i5/i3 processors, supports DDR3 2133(overclocking)/1866(overclocking)/1600/1333/1066 non-ECC, un-buffered memory, supports up to 32GB of system capacity.

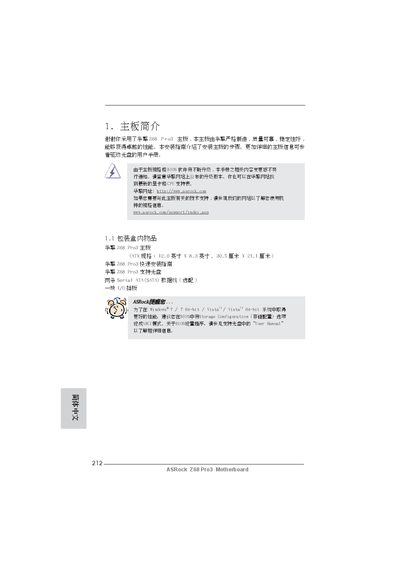

This guide provides everything needed to install the ASRock Z68 Pro3 motherboard, from unpacking the package to configuring the BIOS. It includes safety precautions, CPU installation instructions, and details on connecting power, storage, and peripheral devices.
The document also lists the board’s specifications, supported CPUs, memory types, expansion slots, and compatible operating systems, helping users verify that their system components meet the requirements before assembly. This manual is written in Chinese.
| Form factor | ATX (12.0" x 8.8", 30.5 cm x 21.1 cm) |
|---|---|
| CPU socket | LGA1155 |
| Chipset | Intel Z68 |
| Supported CPUs | 2nd‑gen Intel i7 / i5 / i3 (LGA1155) |
| Memory type | DDR3, dual‑channel |
| Maximum memory capacity | 32 GB |
| Memory speeds | DDR3‑2133 / DDR3‑1866 / DDR3‑1600 / DDR3‑1333 / DDR3‑1066 |
| PCIe slots | 1 × PCIe 2.0 × 16, 3 × PCIe × 1, 2 × PCIe × 2 |
| USB ports | 4 × USB 2.0, 2 × USB 3.0 |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Audio | Realtek ALC892 7.1‑channel HD audio |
| Video outputs | 1 × D‑Sub, 1 × DVI‑D, 1 × HDMI 1.4a |
The motherboard provides two SATA3 6 Gb/s ports.
It can support up to 32 GB of DDR3 memory.
The board uses an LGA1155 socket for 2nd‑generation Intel CPUs.
